92 cm wide shields

Description

• Reduces exposure to scatter radiation emanating from the table or patient’s body.
• Easily mounts to either side of the table allowing pivotal arm to always face the head end.
• Lightweight, durable structure supporting a flexible lead curtain (0.5 mm lead equivalent).

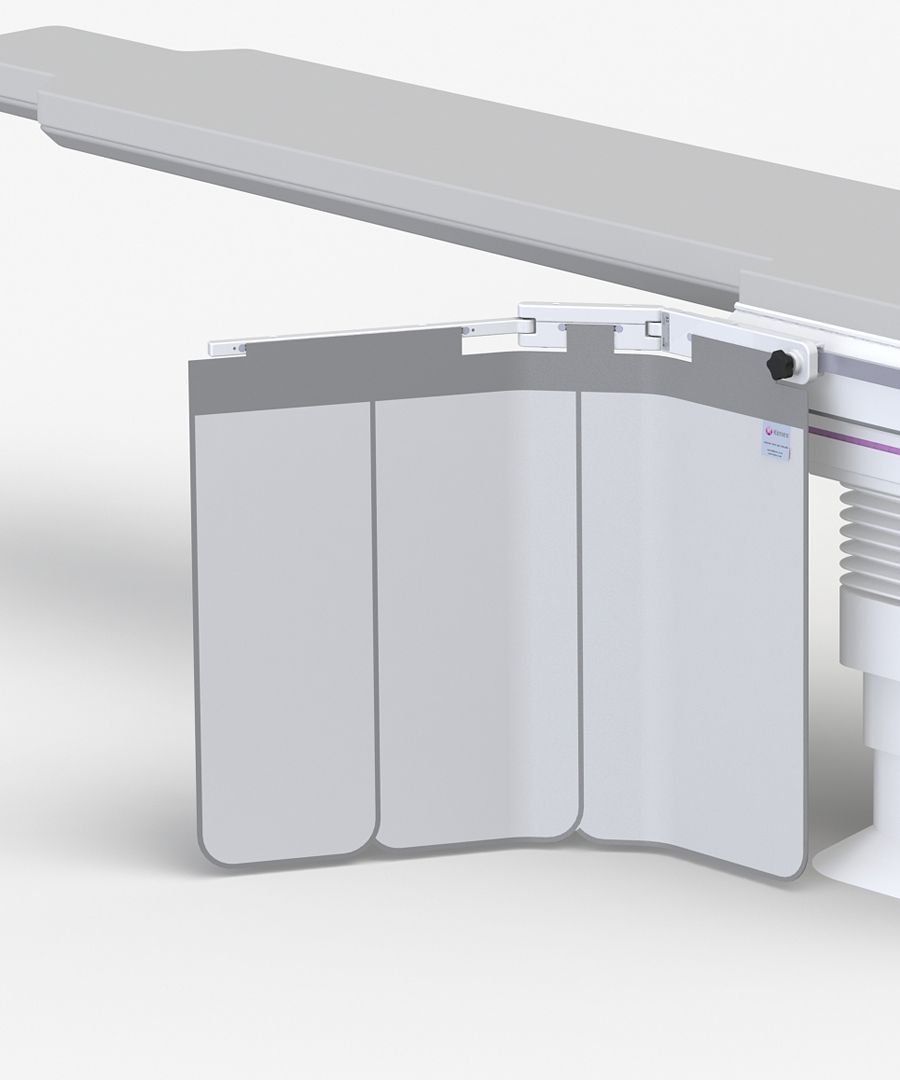

• Curtain is available in one piece or split into three separate overlapping panels.
• 92 cm wide x 70 cm high curtain providing a safe zone of occupancy.
• 29 cm wide attachment bracket slides onto a 25 mm or 29 mm high tableside accessory rail (max. 11 mm depth).
• Securing handle position allows the shield to overhang the rail end or be repositioned further along the table.
• Pivotal arm with double friction joint can swivel outwards to form a 46 cm or 63 cm wing.
• Self-adjusting friction pivot ensures no unwanted curtain movement even when table is tilted.
• Curtains 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer is unable to tear or fall away unnoticed.
• Curtain forms around an under table x-ray tube without impeding movement.
• If required the curtain can also hold three semi-flexible top shields, 1 x 57 cm and 2 x 27 cm.

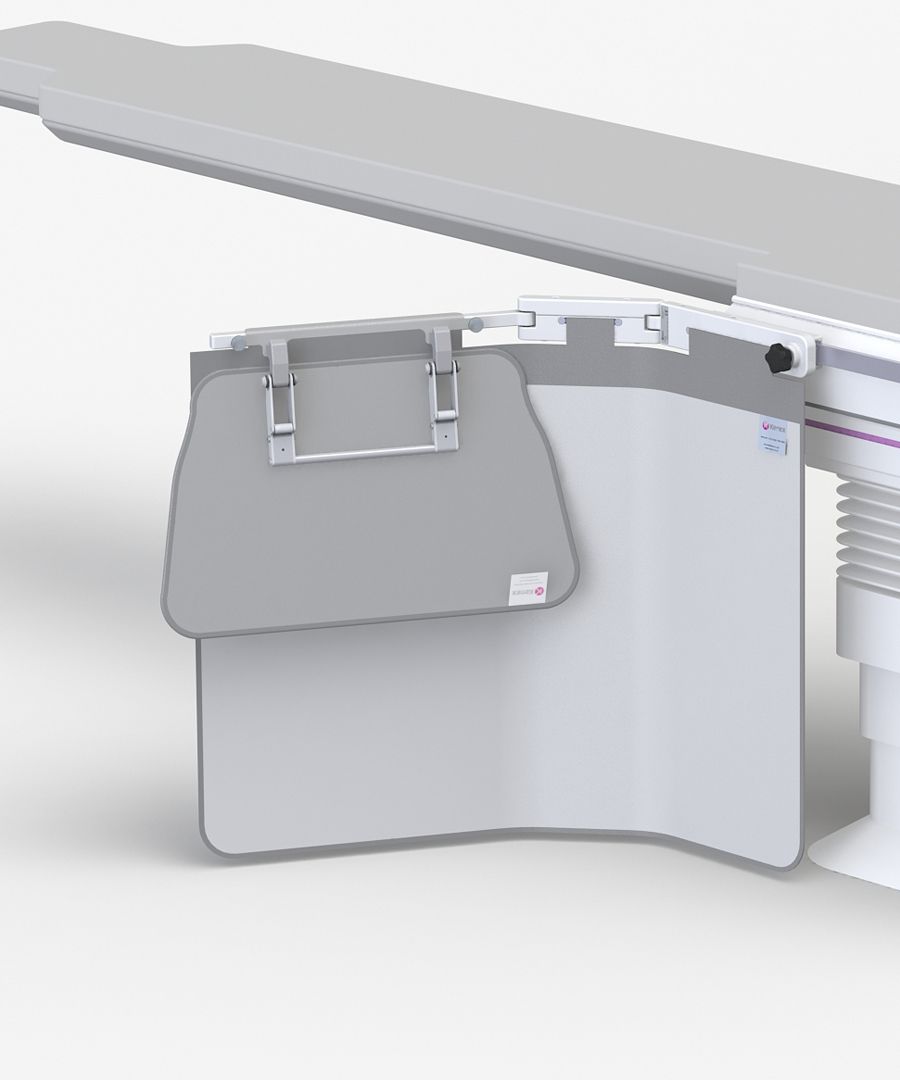

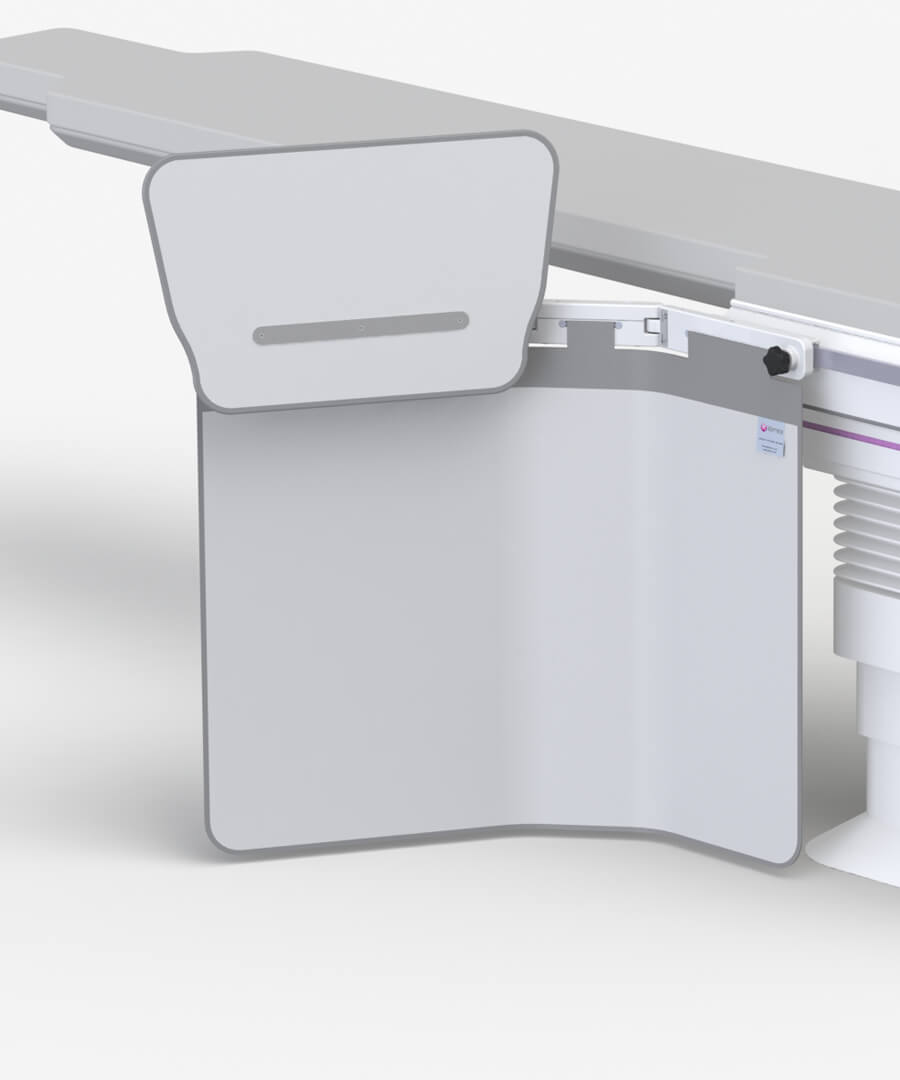

Optional: 1 x 57 cm wide semi-flexible, lift-off top shield. (312/DS/3.32)
Optional: 1 x 57 cm wide semi-flexible, fold-down top shield. (312/DS/3.33)

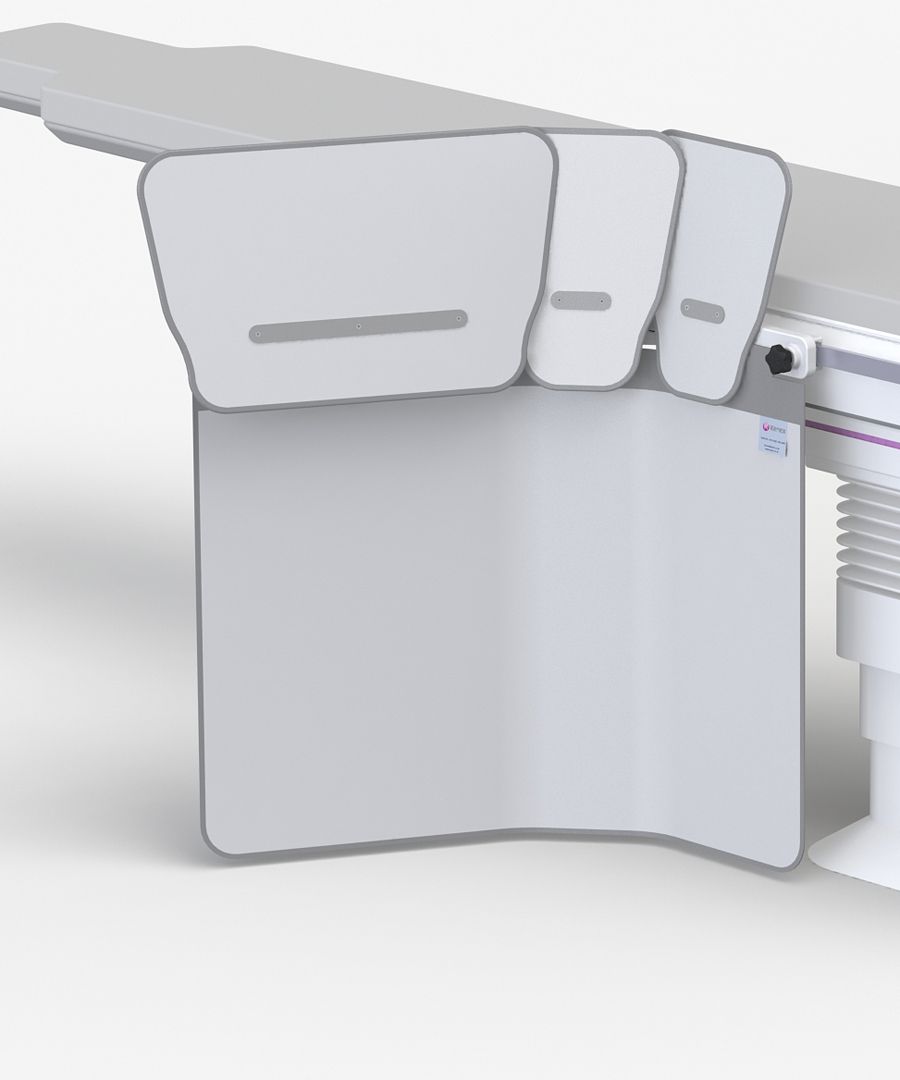

Optional: 2 x 27 cm wide, semi-flexible, lift-off top shield. (312/DS/3.30)
